Single-phase EMI filter effectively suppress electromagnetic interference and noise into and out of equipment power lines to meet susceptibility standards for commercial and military emissions. DOREXS offers a wide range of standard and custom single phase EMI filter for a wide range of voltages and currents. Able to provide reasonable customized services according to customer needs.

DOREXS' Single Phase EMI Power Line Filters deliver industry leading performance by utilizing innovations in materials and design to ensure compliance with the most stringent limits and requirements. And, our class-leading compact size saves space for all equipment types. Our EMI filters are designed in single-stage and multi-stage configurations according to international safety standards, DOREXS delivered the right solution on time and within budget. Escort for EMC testing of products.

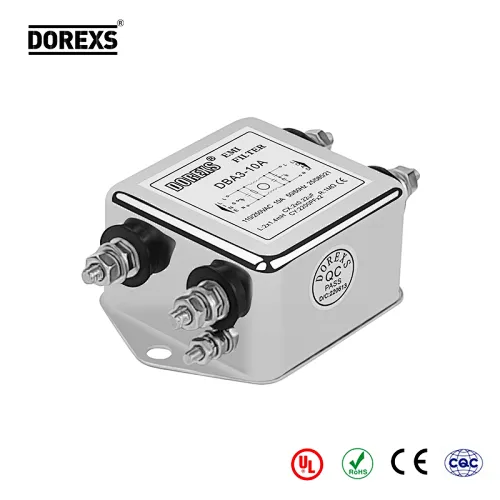

Product Name:	DBA3 Bolt Link EMI Filter	Temperature Range:	-25℃~85℃
Rated Current:	1A-20A	Withstand Test Voltage:	1750VAC
Rated Voltage:	110VAC-250VAC	Fire Resistance：	UL 94V-0
Working Frequency:	50/60HZ	Certification：	cUL,CE,CQC,ROHS





Overall Dimension（±1mm)
Insertion loss -(common mode)
DBA3-1A/DBA3-3A	DBA3-6A/DBA3-10A



Featured and Benefits

DBA3 Filters are Designed for Quick and Easy Installation

High Differential and Common Mode Attenuation

Very Low Leakage Current

Insert and Bolt Two Installation Methods

Chokes with High Permeability Core Material and Excellent Thermal Performance

All EMI Filters Provide Excellent Conduction Attenuation

 Application Field

Electric power system

Electronic equipment

Various disinfection and purification equipment

Laser cutting equipment

Autonomous robots and so on















DOREXS provides a wide variety of EMI/EMC filter options, standardized and customized electromagnetic interference solutions.

Provide customers with comprehensive engineering technical support.
