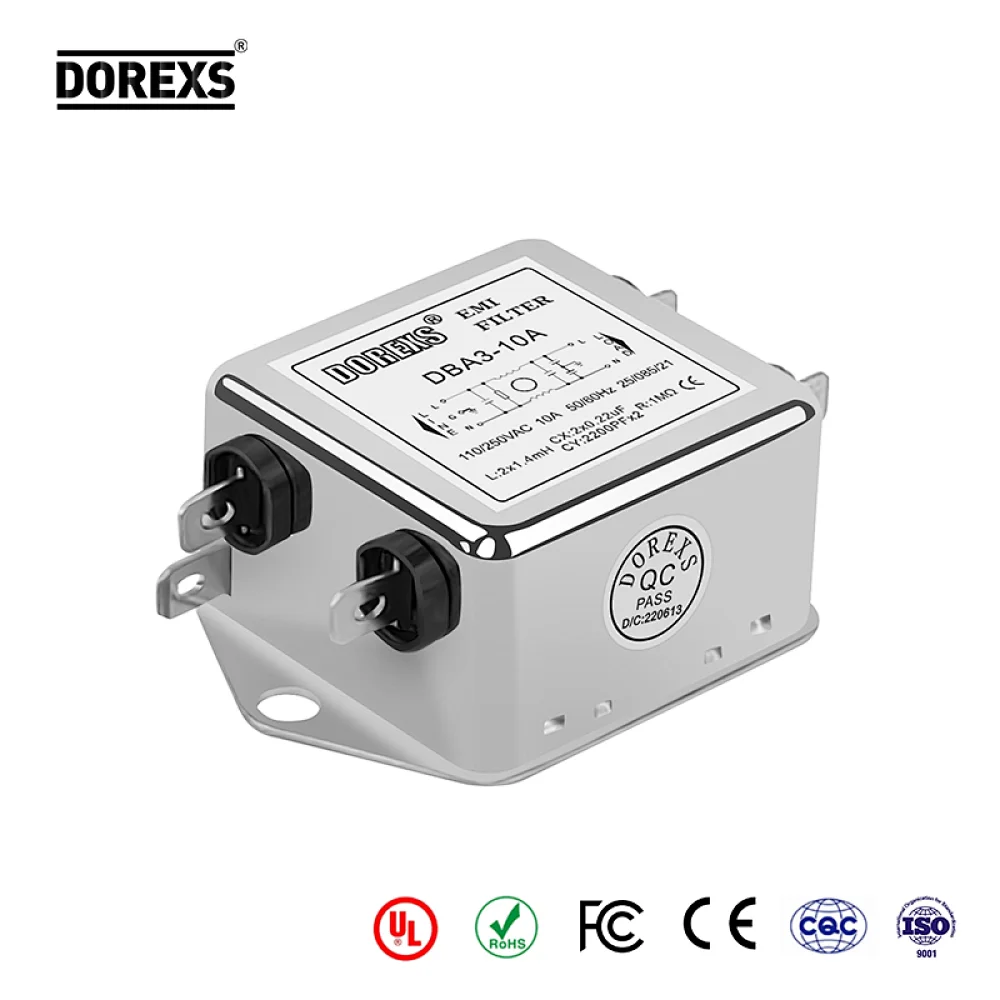

Single phase General Purpose EMI Filter
DBA3 Insert Interface
1
Rated Current：1A-20A
General Purpose EMI Filter
Certificate：cUL,CQC,CE,R
Can be customize according to customer requirements.
Support free samples
General Purpose EMI Filter
Certificate：cUL,CQC,CE,R
Can be customize according to customer requirements.
Support free samples
Quantity
Product Details
| Product Name: | DBA3 Single-Phase EMI Filter |
| Rated Current: | 1-20A |
| Rated Voltage: | 110VAC-250VAC |
| Working Frequency: | 50/60HZ |
| Temperature Range: | -25℃~85℃ |
| Withstand Test Voltage: | 1750VAC |
| Fire Resistance： | UL 94V-0 |
| Certification： | cUL,CE,CQC,ROHS |
Featured and Benefits
- DBA3 Filters are Designed for Quick and Easy Installation
- High Differential and Common Mode Attenuation
- Very Low Leakage Current
- Insert and Bolt Two Installation Methods
- Chokes with High Permeability Core Material and Excellent Thermal Performance
- All EMI Filters Provide Excellent Conduction Attenuation
Application Field
- Electrical and Electronic Equipment
- Industrial Automation Equipment
- Medical Equipment
- Digital Communication Equipmen
DOREXS provides a wide variety of EMI/EMC filter options, standardized and customized electromagnetic interference solutions.
Provide customers with comprehensive engineering technical support.
