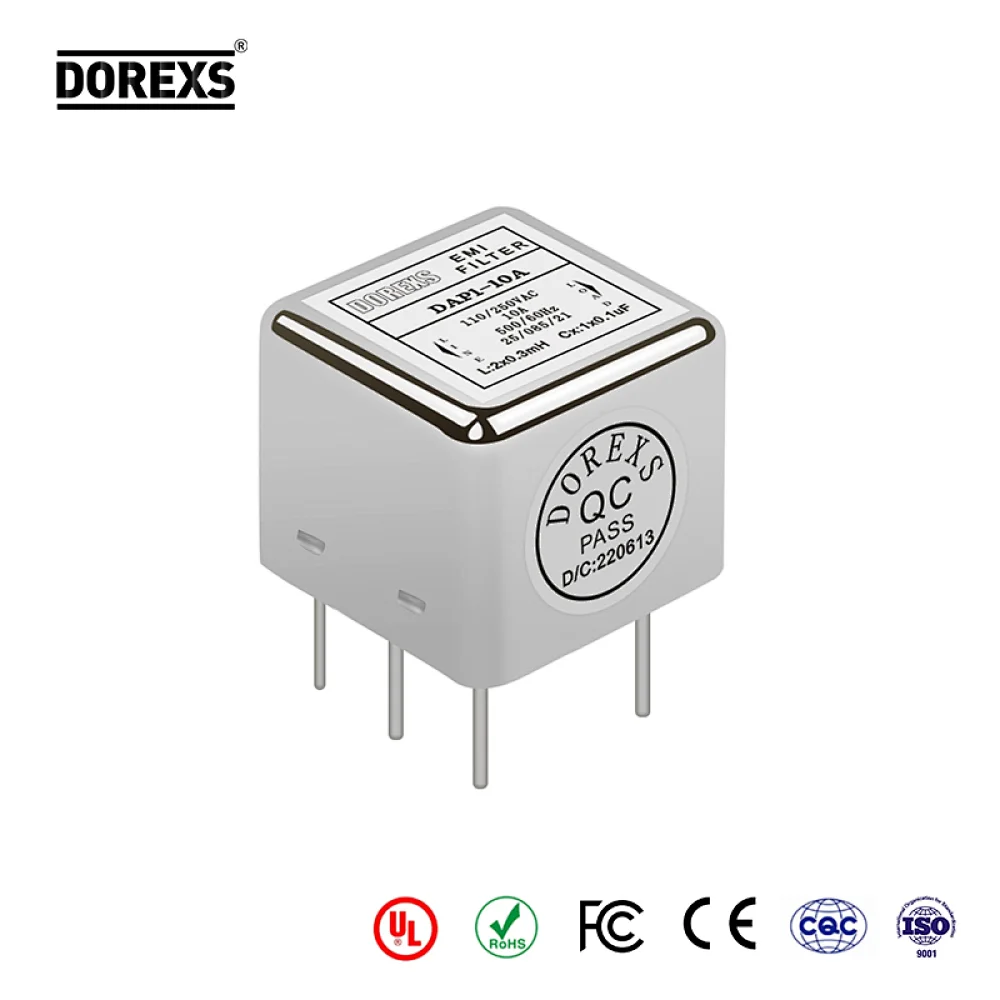

High Performance Two-stage PCB-mounting EMC EMI Filter
DAP1 1-10A High Performance
1
Rated Current：1A-10A
High attenuation two-stage design
PCB-mountable design
Certificate：cUL,CQC,CE,ROHS
Can be customize according to customer requirements.
Support free samples
High attenuation two-stage design
PCB-mountable design
Certificate：cUL,CQC,CE,ROHS
Can be customize according to customer requirements.
Support free samples
Quantity
DOREXS offers the widest selection of EMC/EMI filters in the world. Standardized and customer-specific solutions - with full engineering support - help to meet international compliance standards and improve the immunity and safety of electrical and electronic equipment.
Features and Benefits
- Two-stage single-phase design
- PCB through hole mounting
- Custom specific versions on request
- Very good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
Technical Specifications
- Rated Voltage：110VAC-250VAC
- working frequency：50/60HZ
- Rated Current：1A-10A
- Withstand test voltage：1750VAC
- Temperature range：-25℃~85℃
- Certificate：cUL,CQC,CE,ROHS
- Fire resistance：UL 94V-0
Typical Applications
- LED driving system
- Medical equipment
- Lighting equipment
- Small household appliance
