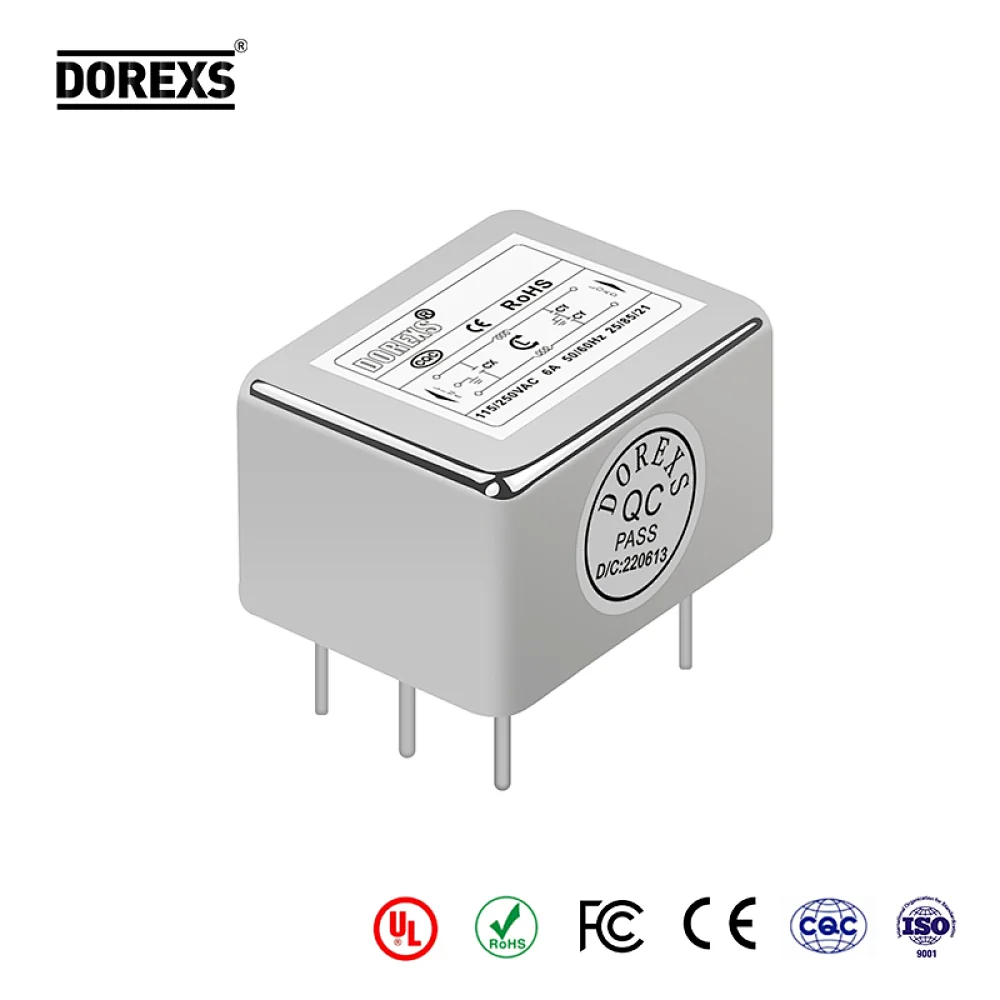

DAP2-ac line filter pcb
High Performance cheap price PCB noise filter
DAP2 1-10A Cost-effective emc filter
Rated Current:1A-10A

Compact PCB-mountable design

PCB-mountable design


Can be customize according to customer requirements.

Support free samples

DOREXS offers the widest selection of EMC/EMI filters in the world. Standardized and customer-specific solutions - with full engineering support - help to meet international compliance standards and improve the immunity and safety of electrical and electronic equipment.

Features and Benefits

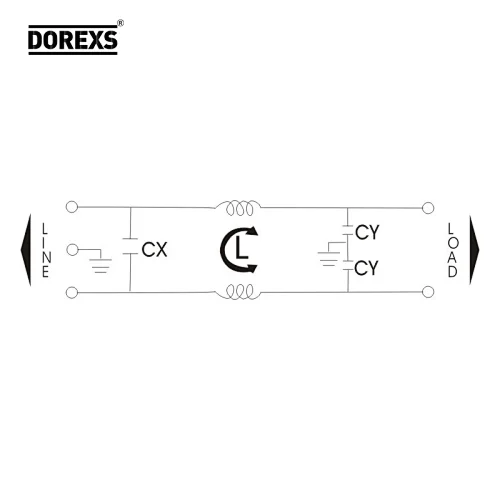

  • Two-stage single-phase design
  • Low profile
  • Custom specific versions on request
  • PCB through hole mounting
  • Good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior

Technical Specifications

  • Rated Voltage:110VAC-250VAC
  • working frequency:50/60HZ
  • Rated Current:1A-10A
  • Withstand test voltage:1750VAC
  • Temperature range:-25℃~85℃
  • Certificate:cUL,CQC,CE,ROHS
  • Fire resistance:UL 94V-0

Typical Applications

  • LED driving system
  • Medical equipment
  • Lighting equipment
  • Small household appliance
