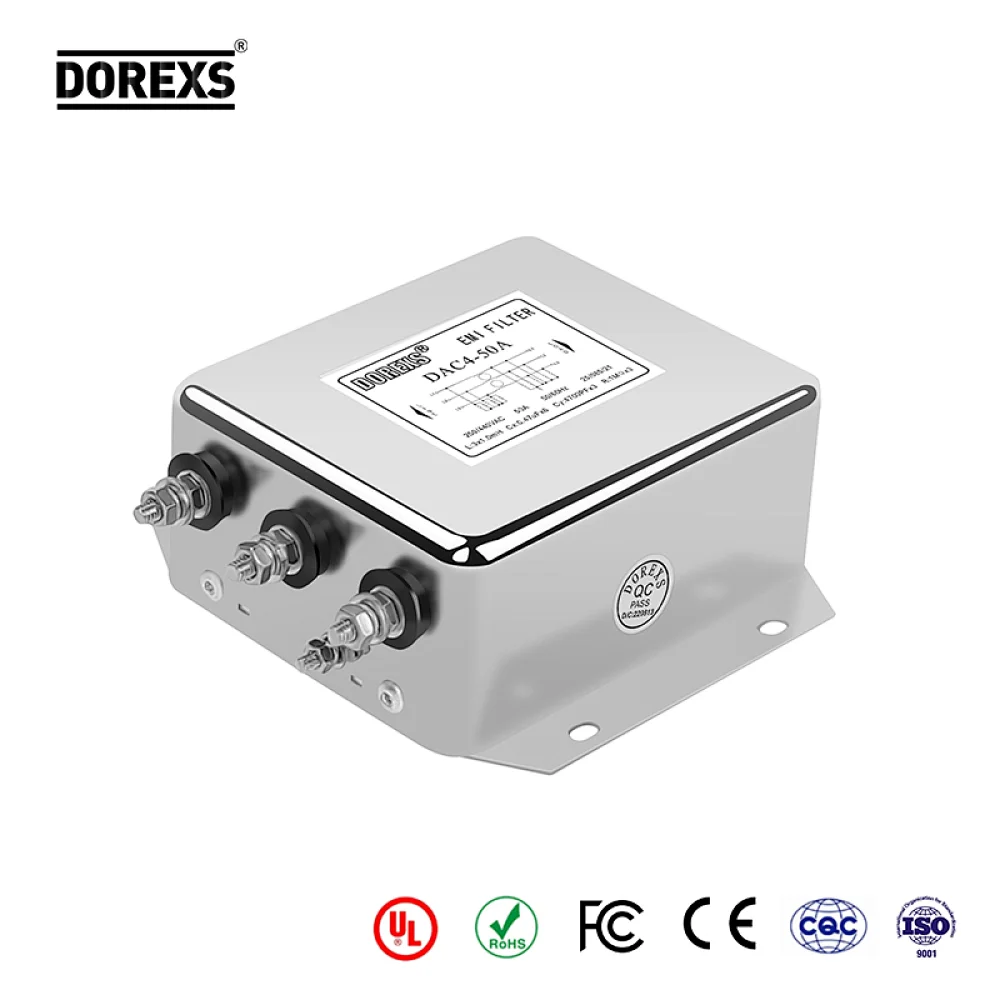

440VAC 40-80A 3 Phase Filter Low Leakage Current
DAC4
1
Rated Current：40A-80A
Low Leakage Current
Certificate：cUL,CQC,CE,ROHS
Can be customize according to customer requirements.
Support free samples
Low Leakage Current
Certificate：cUL,CQC,CE,ROHS
Can be customize according to customer requirements.
Support free samples
Quantity
Product Details
| Product Name: | DAC4 3 Phase Filter |
| Rated Current: | 40-80A |
| Rated Voltage: | 220VAC-440VAC |
| Working Frequency: | 50/60HZ |
| Temperature Range: | -25℃~85℃ |
| Withstand Test Voltage: | 2750VAC |
| Fire Resistance： | UL 94V-0 |
| Certification： | cUL,CE,CQC,ROHS |
Featured and Benefits
- DAC4 3 phase filter integrated design, small size, high cost performance, easy and fast installation
- Very Low Leakage Current
- A variety of interface terminals are available
- 3 phase filters of different specifications can be customized according to customer requirements
- All EMI Filters Provide Excellent Conduction Attenuation
Application Field
- Three-phase system power
- Three Phase Power Electronics
- Various three-phase electrical equipment
- Devices for automation equipment
DOREXS provides a wide variety of EMI/EMC filter options, standardized and customized electromagnetic interference solutions.
Provide customers with comprehensive engineering technical support.
