3 phase emi filter 100A-200A
100-200A 3 phase filter low leakage current
Rated Current:100A-200A

Low Leakage Current


Can be customize according to customer requirements.

Support free samples
Product Details

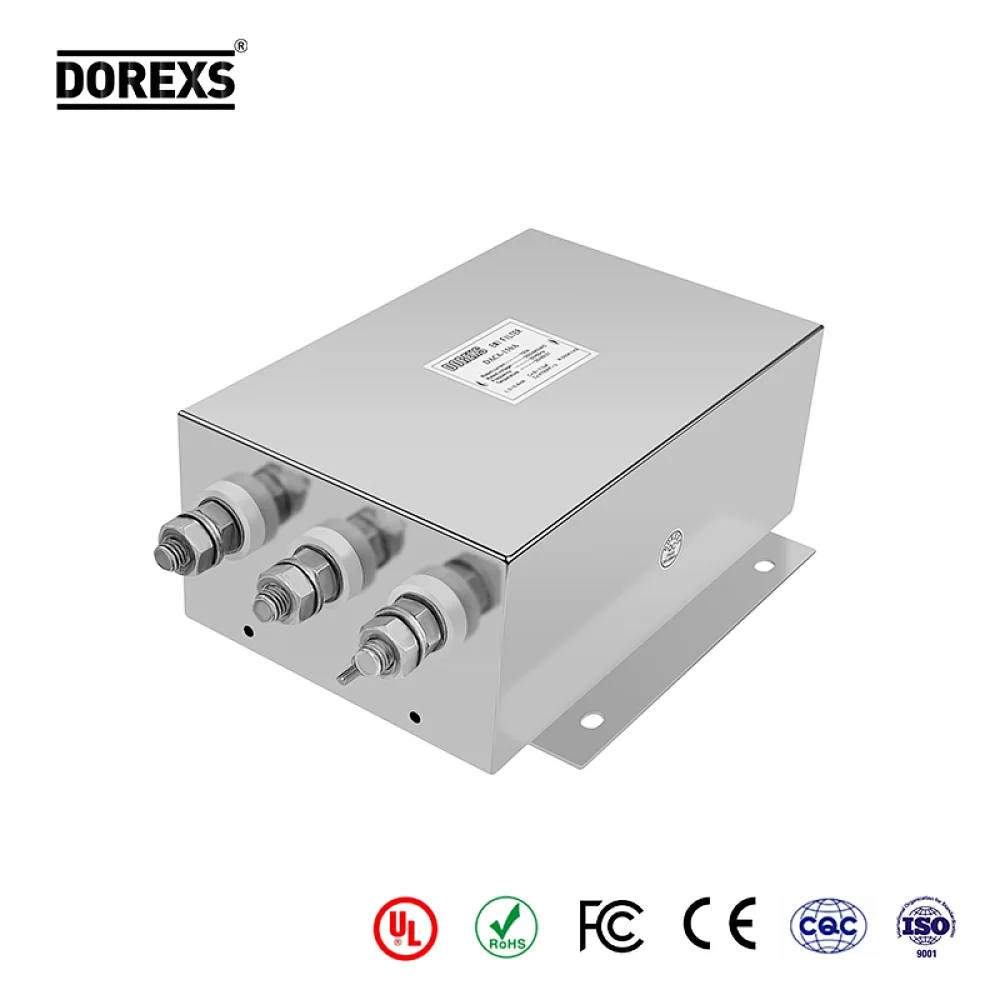

Product Name:DAC6 3 Phase Filter
Rated Current:100-200A
Rated Voltage:220VAC-440VAC
Working Frequency:50/60HZ
Temperature Range:-25℃~85℃
Withstand Test Voltage:2750VAC
Fire Resistance:UL 94V-0
Featured and Benefits
  • DAC6 3 phase filter integrated design, high cost performance, easy and fast installation
  • Very Low Leakage Current
  • A variety of interface terminals are available
  • 3 phase filters of different specifications can be customized according to customer requirements
  • All EMI Filters Provide Excellent Conduction Attenuation
 Application Field
  • Three-phase system power
  • Three Phase Power Electronics
  • Various three-phase electrical equipment
  • Devices for automation equipment

DOREXS provides a wide variety of EMI/EMC filter options, standardized and customized electromagnetic interference solutions.
Provide customers with comprehensive engineering technical support.
