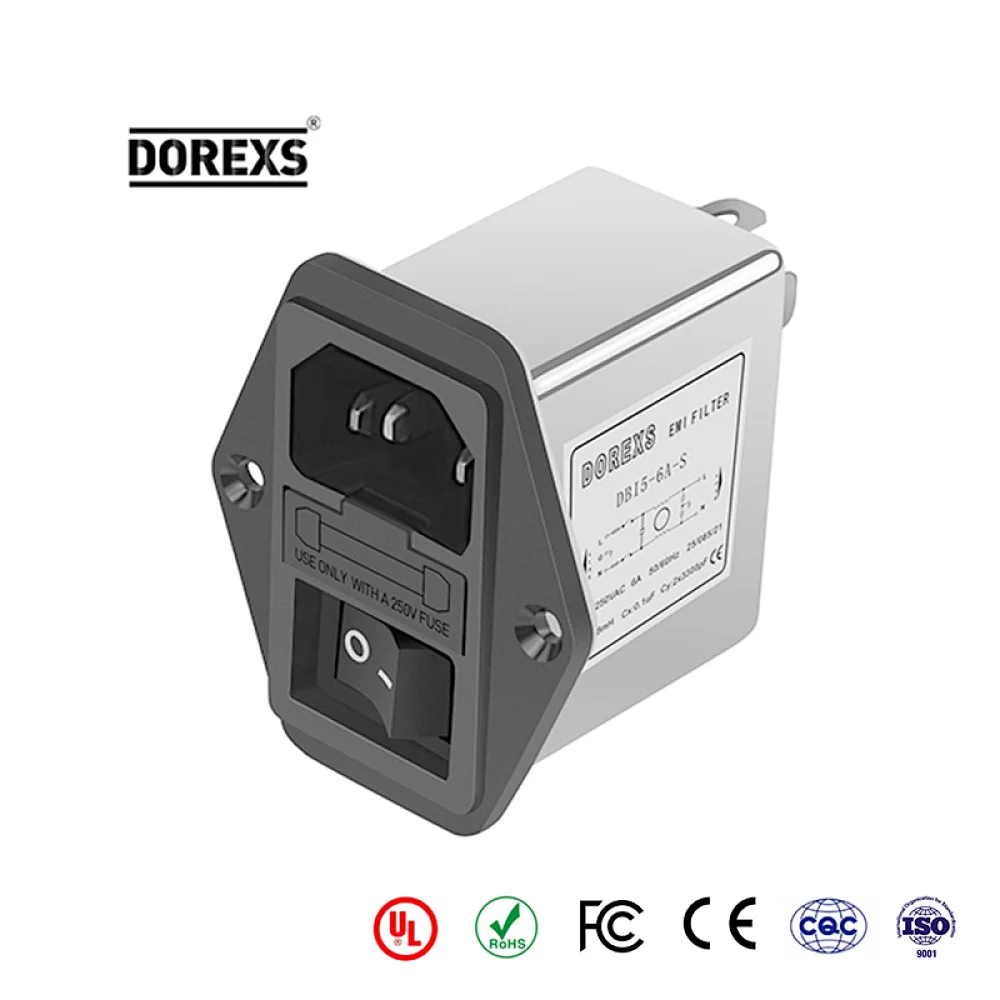

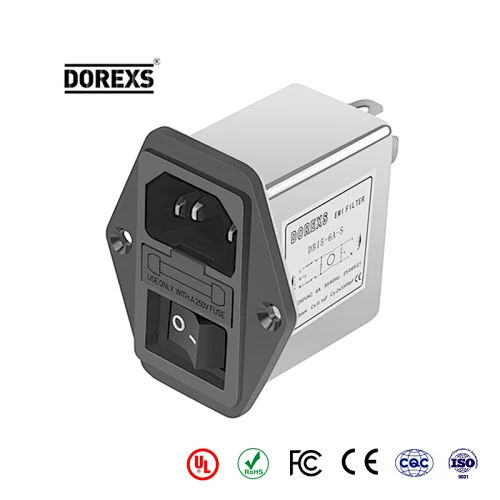

1-10A IEC Inlet Fiters with Double Fuse
DBI5-S
1
Rated Current：1A-10A
Excellent attenuation performance
Certificate：cUL,CQC,CE,ROHS
Can be customize according to customer requirements.
Support free samples
Excellent attenuation performance
Certificate：cUL,CQC,CE,ROHS
Can be customize according to customer requirements.
Support free samples
Quantity
Product Details
| Product Name: | DBI5-S IEC Inlet Filters with Double Fuse |
| Rated Current: | 1A-10A |
| Rated Voltage: | 110VAC-250VAC |
| Working Frequency: | 50/60HZ |
| Temperature Range: | -25℃~85℃ |
| Withstand Test Voltage: | 1750VAC |
| Fire Resistance： | UL 94V-0 |
| Certification： | cUL,CE,CQC,ROHS |
Featured and Benefits
- DBI5 IEC Inlet Filters standard socket input + double fuse
- Rear/front or snap-in installation
- Integrated design of ship type switch, small size, high cost performance, convenient and quick installation
- Chokes with High Permeability Core Material and Excellent Thermal Performance
- All EMI Filters Provide Excellent Conduction Attenuation
- Customized versions available upon request
Application Field
- Medical equipment
- Monitoring equipment
- Testing equipment
- Audio equipment
- Game entertainment equipment
DOREXS provides a wide variety of EMI/EMC filter options, standardized and customized electromagnetic interference solutions.
Provide customers with comprehensive engineering technical support.
