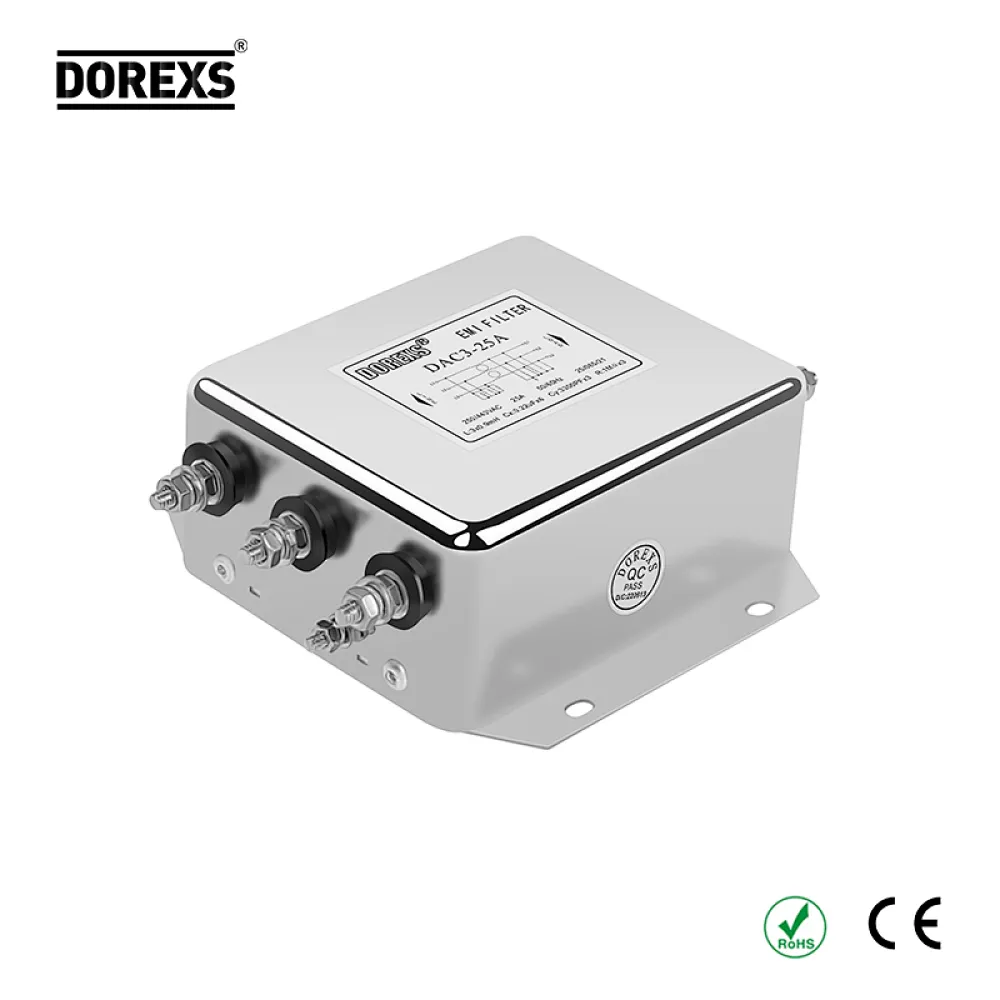

Compact 3 phase AC Filter for Industrial Equipment

Model NO. DAC3 30-35A Low Leakage current

Rated Current：30A-35A

Compact, space-saving design, optimized for industrial machinery

Combines high attenuation performance with low leakage current

Certificate：CE,ROHS

Can be customize according to customer requirements.

Support free samples

Quantity

Three-phase EMI power line filters reduce electromagnetic interference and noise into and out of equipment power lines to meet commercial and military emissions and susceptibility standards. DOREXS offers a wide range of standard and custom 3 phase AC filters for various voltages and currents.

DOREXS'3 phase AC filters deliver industry-leading performance by utilizing current material and design innovations to ensure compliance with the most stringent limits and requirements. In addition, our class-leading compact size saves installation space for all equipment, including inverters and motor drives. With single-stage and multi-stage configurations designed according to international safety standards, DOREXS provides customers with the correct EMI solution on time and within budget. Escort for customer EMCtesting.

Product Details

Product Name:	DAC3 3 phase AC filters	Temperature Range:	-25℃~85℃
Rated Current:	30A-35A	Withstand Test Voltage:	2750VAC
Rated Voltage:	380VAC/440VAC	Fire Resistance：	UL 94V-0
Working Frequency:	50/60HZ	Certification：	CE,ROHS

Overall Dimension（±1mm)

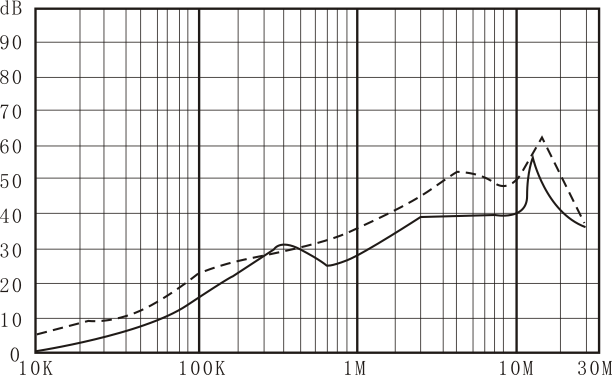

Insertion loss -(common mode)

DAC3-30A

Featured and Benefits

DAC3 family of 3 phase AC filters and neutral line filters provides a cost-effective interference suppression solution for a wide variety of applications

Available in four versions, with current ratings from 30 to 35 A, the 3 phase AC filters employ a single-stage four-wire LC circuit with saturating resistant chokes, and have a very low operational leakage current

DAC33 phase AC filters are contained within an extremely compact metal housing, making them ideal for use in situations where space is at a premium

3 phase AC filters Application Field

Switching power supply

Power equipment such as UPS

Power monitoring equipment

Measuring equipment
