3A-20A Single Phase AC High Performance EMI Filter
DEA4 Insert Interface
Rated Current：3A-20A
High Performance EMI Filter
Certificate：cUL,CQC,CE,R
Can be customize according to customer requirements.
Support free samples
High Performance EMI Filter
Certificate：cUL,CQC,CE,R
Can be customize according to customer requirements.
Support free samples
Quantity

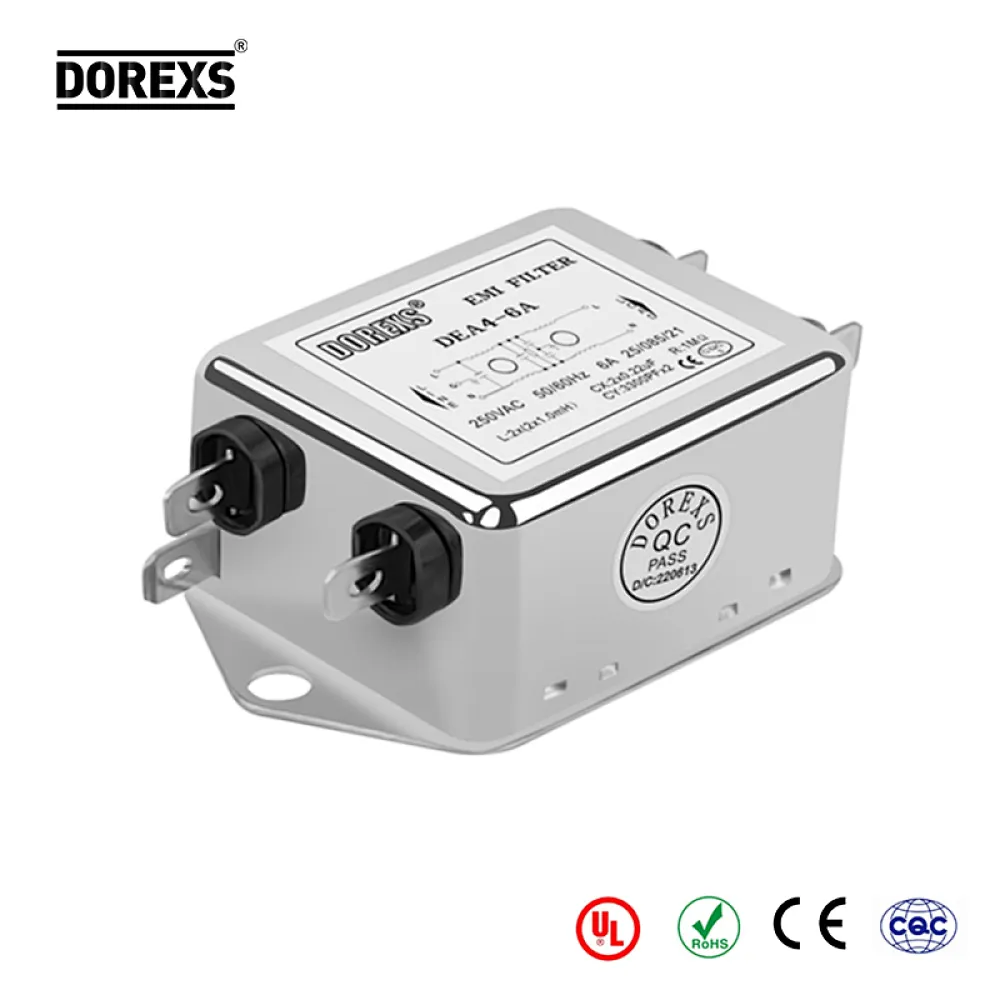

The DEA4 is a single phase high performance AC mains filter for blade connection applications. The filter has a rated current of 3A-20A and a rated voltage of 250VAC, which can effectively suppress electromagnetic interference and provide stable power quality.
Key features and applications of this filter include:
1. Anti-electromagnetic interference: DEA4 EMI Filter adopts advanced EMI suppression technology, which can effectively reduce the impact of electromagnetic interference on equipment and systems, and provide clear and stable signal output.
2. Wide current range: DEA4 EMI Filter are suitable for a current range from 3A to 20A, which can meet the needs of high-power equipment and systems.
3. Insert connection: The filter is installed by insert/bolt connection, which is convenient and quick, and is suitable for various equipment and system requirements.
4. Bipolar filtering: DEA4 EMI Filter is a bipolar filter, which can filter two power lines and provide better power filtering effect.
5. Wide application: DEA4 EMI Filter are widely used in various high-performance electronic equipment, industrial control systems and other fields. It can provide reliable power filtering to ensure the stability and reliability of equipment and systems.
1. Anti-electromagnetic interference: DEA4 EMI Filter adopts advanced EMI suppression technology, which can effectively reduce the impact of electromagnetic interference on equipment and systems, and provide clear and stable signal output.
2. Wide current range: DEA4 EMI Filter are suitable for a current range from 3A to 20A, which can meet the needs of high-power equipment and systems.
3. Insert connection: The filter is installed by insert/bolt connection, which is convenient and quick, and is suitable for various equipment and system requirements.
4. Bipolar filtering: DEA4 EMI Filter is a bipolar filter, which can filter two power lines and provide better power filtering effect.
5. Wide application: DEA4 EMI Filter are widely used in various high-performance electronic equipment, industrial control systems and other fields. It can provide reliable power filtering to ensure the stability and reliability of equipment and systems.
In conclusion, DEA4 is a single-phase high-performance AC power filter, suitable for blade connection applications, with a rated current of 3A-20A and a rated voltage of 250VAC. It can effectively suppress electromagnetic interference and provide stable power quality. It not only has a wide current range and a plug-in connection method, but also adopts a bipolar filter design, which is suitable for various high-power equipment and systems.
Product Details
| Product Name: | DEA4 Single-Phase EMI Filter | Temperature Range: | -25℃~85℃ |
| Rated Current: | 3A-20A | Withstand Test Voltage: | 1750VAC |
| Rated Voltage: | 110VAC-250VAC | Fire Resistance： | UL 94V-0 |
| Working Frequency: | 50/60HZ | Certification： | cUL,CE,CQC,ROHS |

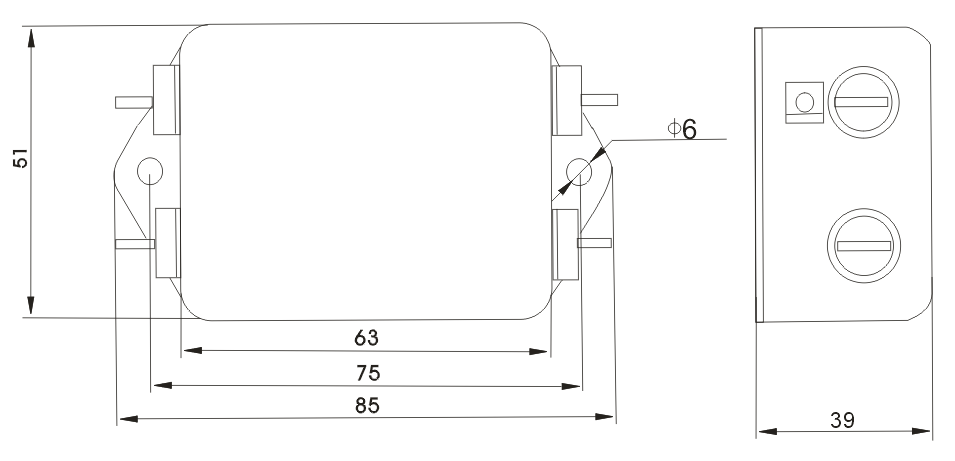

Overall Dimension（±1mm) | |
 | |
Insertion loss -(common mode) | |
 |
Featured and Benefits
DEA43 EMI Filter are Designed for Quick and Easy Installation
Adopt Two-Stage Design Method, Better Anti-interference Performance
Very Low Leakage Current
Three Installation Methods of Power Cord, Insert and Bolt are Available
Chokes with High Permeability Core Material and Excellent Thermal Performance
All EMI Filter Provide Excellent Conduction Attenuation
Application Field
Electrical appliances, testing equipment
Electronic equipment
,medical equipment
Various disinfection and purification equipment
Laser cutting equipment
Autonomous robots and so on
 |  |
 |  |  |
DOREXS provides a wide variety of EMI/EMC filter options, standardized and customized electromagnetic interference solutions.
Provide customers with comprehensive engineering technical support.
