20A-30A Two-Stage Power Supply EMI Filter
DEA5 Bolt Link
Rated Current：20A-30A
High Performance EMI Filter
Certificate：cUL,CQC,CE,ROHS
Can be customize according to customer requirements.
Support free samples
High Performance EMI Filter
Certificate：cUL,CQC,CE,ROHS
Can be customize according to customer requirements.
Support free samples
Quantity
Model DEA5 is a high performance EMI filter for single phase filter applications. It can effectively suppress electromagnetic interference and provide stable power quality. With a rated voltage of 250V, the filter is suitable for various electronic equipment and systems.
The main application scope of EMI filter includes but not limited to the following aspects:
1. Electronic equipment: DEA5 EMI filters can be used in electronic products such as computers, TVs, and audio equipment to effectively reduce the impact of electromagnetic interference on equipment performance and provide clearer and more stable signal output.
2. Industrial control systems: In industrial environments, electromagnetic interference may negatively affect the proper operation of control systems. DEA5 EMI filters can be used in industrial control systems to provide reliable power filtering to ensure system stability and reliability.
3. Medical equipment: Medical equipment has high requirements on power quality and requires a stable power supply to ensure accurate measurement and treatment. DEA5 filters can be used in medical equipment to provide efficient EMI suppression and ensure the normal operation of the equipment.
4. Communication equipment: In communication equipment, electromagnetic interference may cause problems such as signal distortion and communication interruption. DEA5 filters can be used in communication equipment to provide effective EMI filtering and improve communication quality and reliability.
1. Electronic equipment: DEA5 EMI filters can be used in electronic products such as computers, TVs, and audio equipment to effectively reduce the impact of electromagnetic interference on equipment performance and provide clearer and more stable signal output.
2. Industrial control systems: In industrial environments, electromagnetic interference may negatively affect the proper operation of control systems. DEA5 EMI filters can be used in industrial control systems to provide reliable power filtering to ensure system stability and reliability.
3. Medical equipment: Medical equipment has high requirements on power quality and requires a stable power supply to ensure accurate measurement and treatment. DEA5 filters can be used in medical equipment to provide efficient EMI suppression and ensure the normal operation of the equipment.
4. Communication equipment: In communication equipment, electromagnetic interference may cause problems such as signal distortion and communication interruption. DEA5 filters can be used in communication equipment to provide effective EMI filtering and improve communication quality and reliability.
In summary, model DEA5 is a high performance EMI filter for single phase filter applications with a 250V rated voltage. It has a wide range of applications in electronic equipment, industrial control systems, medical equipment, and communication equipment.
Product Details
| Product Name: | DEA5 Two-Stage EMI Filter | Temperature Range: | -25℃~85℃ |
| Rated Current: | 20A-30A | Withstand Test Voltage: | 1750VAC |
| Rated Voltage: | 110VAC-250VAC | Fire Resistance： | UL 94V-0 |
| Working Frequency: | 50/60HZ | Certification： | cUL,CE,CQC,ROHS |

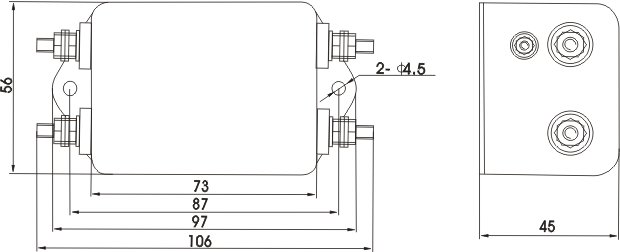

Overall Dimension（±1mm) | |
 | |
Insertion loss -(common mode) | |
 | |
DEA5-20A |
Featured and Benefits
- DEA5 Filters are Designed for Quick and Easy Installation
- Adopt Two-Stage Design Method, Better Anti-interference Performance
- Very Low Leakage Current
- Two Linking Methods of Bolts and Inserts
- Chokes with High Permeability Core Material and Excellent Thermal Performance
- All EMI Filters Provide Excellent Conduction Attenuation
Application Field
Electrical appliances, testing equipment
Electronic equipment
Various disinfection and purification equipment
Laser cutting equipment
Autonomous robots and so on
 |  |
 |  |  |
DOREXS provides a wide variety of EMI/EMC filter options, standardized and customized electromagnetic interference solutions.
Provide customers with comprehensive engineering technical support.
