1A-6A Two Stage Power Line EMI Filter
DEB1 Line Interface
Rated Current：1A-6A
Two Stage Power Line EMI Filter
Certificate：cUL,CQC,CE,ROHS
Can be customize according to customer requirements.
Support free samples
Two Stage Power Line EMI Filter
Certificate：cUL,CQC,CE,ROHS
Can be customize according to customer requirements.
Support free samples
Quantity
Product Details
| Product Name: | DEB1 Power Line EMI Filter | Temperature Range: | -25℃~85℃ |
| Rated Current: | 1A-6A | Withstand Test Voltage: | 1750VAC |
| Rated Voltage: | 110VAC-250VAC | Fire Resistance： | UL 94V-0 |
| Working Frequency: | 50/60HZ | Certification： | cUL,CE,CQC,ROHS |
Overall Dimension（±1mm) | |
 | |

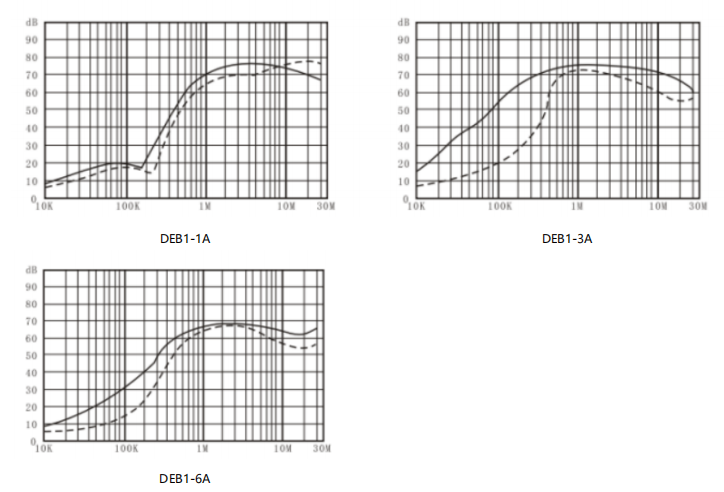

Insertion loss -(common mode) | |
 |
Featured and Benefits
DEB1 EMI filter is small and space-saving
Adopt 2-stage filter circuit design
Good common-mode and differential-mode signal attenuation
Easy installation with single strand wire
Significant effect on solving high-frequency interference of 100Khz-30MHZ
All EMI Filters Provide Excellent Conduction Attenuation
Application Field
Electric power system
Drive system
PLC control system
Servo system
Small industrial equipment, etc
 |  |
 |  |  |
DOREXS provides a wide variety of EMI/EMC filter options, standardized and customized electromagnetic interference solutions.
Provide customers with comprehensive engineering technical support.
