100-200A 3 phase filter low leakage current

Model NO. DAC6 Bolt Link

Rated Current：100A-200A

Low Leakage Current

Certificate：CE,ROHS

Can be customize according to customer requirements.

Support free samples

Quantity

Contact Now add to cart



Product Details



Product Name:	DAC6 3 Phase Filter	Temperature Range:	-25℃~85℃
Rated Current:	100A-200A	Withstand Test Voltage:	2750VAC
Rated Voltage:	20VAC-440VAC	Fire Resistance：	UL 94V-0
Working Frequency:	50/60HZ	Certification：	CE,ROHS

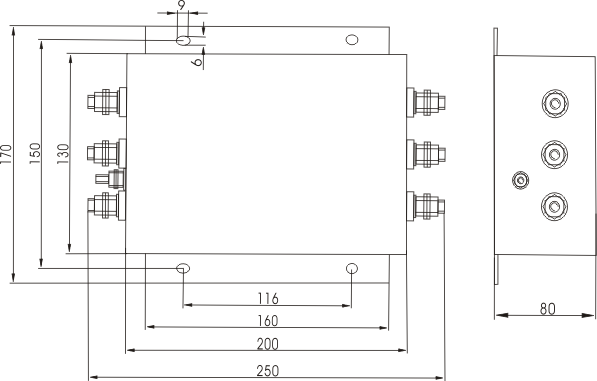

Overall Dimension（±1mm)
Insertion loss -(common mode)
DAC6-100A	DAC6-150A



Featured and Benefits



DAC6 3 phase filter integrated design, high cost performance, easy and fast installation

Very Low Leakage Current

A variety of interface terminals are available

3 phase filters of different specifications can be customized according to customer requirements

All EMI Filters Provide Excellent Conduction Attenuation

 Application Field

Switching power supply

General electronic equipment

Power equipment such as UPS

Power monitoring equipment

Measuring equipment















DOREXS provides a wide variety of EMI/EMC filter options, standardized and customized electromagnetic interference solutions.

Provide customers with comprehensive engineering technical support.

---

Single-phase EMI Filters           Three-Phase EMI Filters           IEC Socket Filters            PCB Filters

Transfer Function:

Low Pass

Type:

EMI Filter

Model Number:

DAC6

Brand Name:

DOREXS

Place of Origin:

Chengdu,China

rejector:

DAC6 Bolt Link.pdf
