IEC intel EMI filters/IEC Inlet Filters effectively suppress electromagnetic interference and noise entering and leaving equipment power lines to meet commercial and military emissions susceptibility standards. DOREXS offers a wide range of standard and custom single phase IEC Inlet Filters for various voltages and currents. Able to provide reasonable customized services according to customer needs.

DOREXS' Single Phase IEC Inlet Filters deliver industry leading performance by utilizing innovations in materials and design to ensure compliance with the most stringent limits and requirements. And, our class-leading compact size saves space for all equipment types. Our EMI filters are designed in single-stage and multi-stage configurations according to international safety standards, DOREXS delivered the right solution on time and within budget. Escort for the EMCtest of the product.

Product Name:	DBI5 IEC Inlet Filters	Temperature Range:	-25℃~85℃
Rated Current:	1A-10A	Withstand Test Voltage:	2150VAC
Rated Voltage:	115VAC-250VAC	Fire Resistance：	UL 94V-0
Working Frequency:	50/60HZ	Certification：	cUL,CE,CQC,ROHS

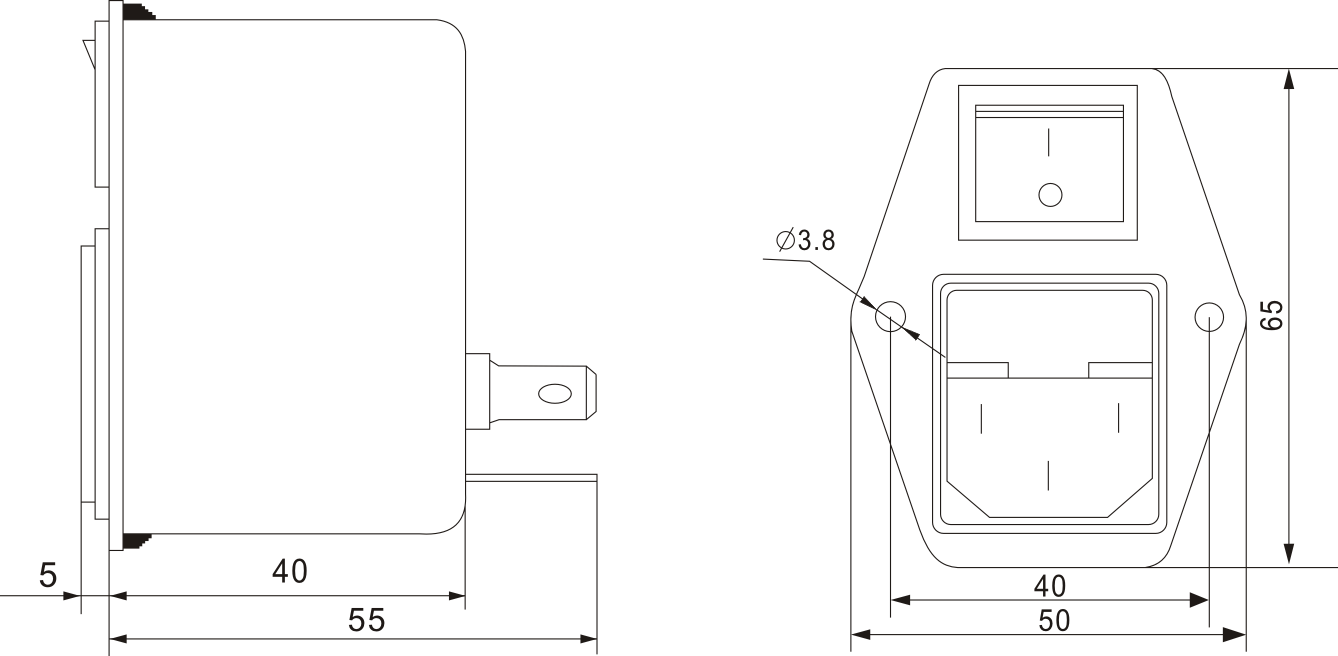

Overall Dimension（±1mm)

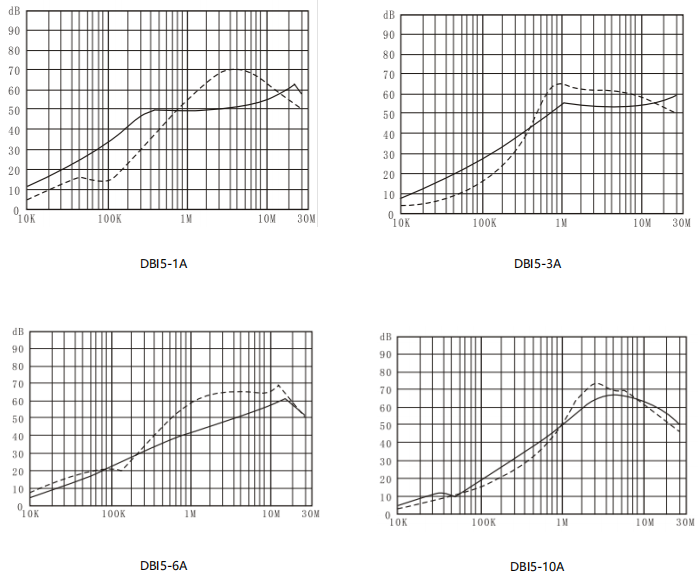

Insertion loss -(common mode)



Featured and Benefits

DBI5 IEC Inlet Filters are Designed for Quick and Easy Installation

Rear/front or snap-in installation

Single or Dual Fuseholders

Chokes with High Permeability Core Material and Excellent Thermal Performance

All EMI Filters Provide Excellent Conduction Attenuation

Customized versions available upon request

 Application Field

Portable electrical and electronic equipment

Single-phase power supply, switching power supply

Test and measurement equipment

EDP and office equipment

Medical equipment, etc.















DOREXS provides a wide variety of EMI/EMC filter options, standardized and customized electromagnetic interference solutions.

Provide customers with comprehensive engineering technical support.
