Model No: DAA2

DAA2 Insert Single Phase EMI Filter,220V,1A-10A,Power Line Noise Filter

Rated Current：1A-10A

High differential and common-mode attenuation

Certificate：cUL,CQC,CE,ROHS

Can be customize according to customer requirements.

Support free samples

Quantity :

Contact Now

DAA2 series single phase EMI filters provide industry-leading performance by leveraging innovations in materials and design to ensure compliance with the most stringent restrictions and requirements.

1A-10A rated current selection range, 220V rated voltage, single-stage or double-stage filter design, a wide range of electronic and electrical equipment applications. DAA2 series filters support customization to meet your special parameter requirements.Supports universal plug-in or leaded connections, offering excellent differential-mode and common-mode noise suppression. Customization is available, and samples are available.

Key Features

Two-stage filters are designed for easy and fast chassis mounting
DAA2 versions EMI filter without capacitors to earth comply to 1MOP for ME (medical equipment) acc
Two-stage filters are designed with good low frequency attenuation
DAA2 EMI filters are also available with two common mode choke configuration
All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
High differential and common-mode attenuation effectively suppresses power line noise.
Wide rated current range: 1A–10A
220V AC operating voltage
Flexible connection methods: Insert or wire connection, terminal types can also be customized.
Low leakage current ≤ 0.5 mA, suitable for systems with safety requirements.
Customization supported (wire length, parameters, etc.), sample testing available.
Certifications: cUL (CUL), CQC, CE, RoHS

Technical Parameters

Specification

Details

Model：

DAA2-Insert

Application：

Industrial / Consumer Electronics

Phase：

Single-phase

Structure：

Single-stage

Max operating voltage：

275VAC

Rated Current：

1A - 10A

Leakage Current：

≤ 0.5mA

Withstand voltage level：

2150VAC

Frequency Range：

50/60Hz

Operating Temperature：

-25°C ~ +85°C

Certifications：

UL, CQC, CE

Dimensions (mm)：

44 × 22 × 18

(W×H×D)

Weight(g)：

Connection Type：

Insert/Power cord

Technical Advantages

The two-stage filtering version offers enhanced low-frequency interference suppression.
The common-mode choke uses a highly saturated magnetic material, maintaining excellent suppression even under high current conditions.
Optimized capacitor configuration and magnetic ring structure ensure stable suppression performance across the 150 kHz–30 MHz high-frequency interference range.
Excellent thermal behavior: maintaining high stability even at high temperatures.

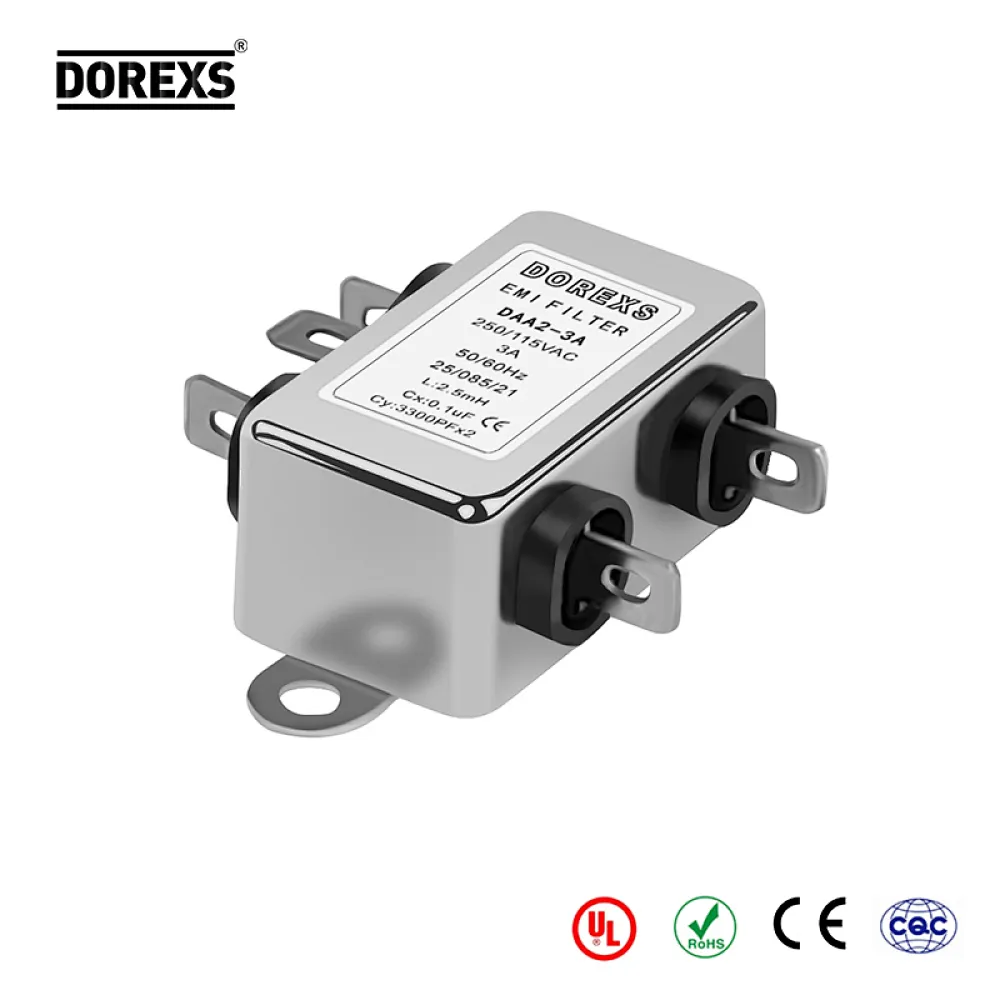

Product Pictures

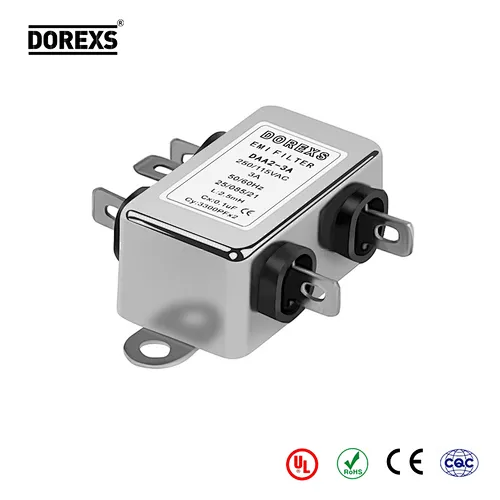

Detail Picture

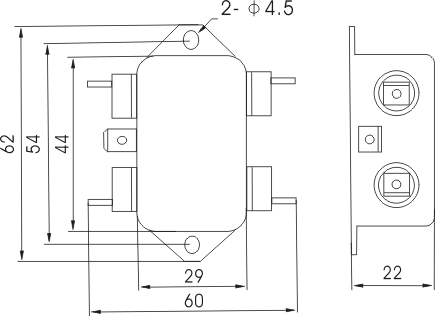

Overall Dimension（±1mm)

The cable length and interface type can be customized according to customer needs.

Circuit Diagram

Insertion Loss

Approvals and Compliances

cUL / UL Certification
CE Certification (European Safety Standards)
RoHS Compliance (Environmentally Friendly)
Insulation Withstand Voltage: Can withstand high voltage line-to-line and line-to-ground tests (e.g., 2150 VAC line-to-ground)

Typical Applications

Lighting equipment
LED drivers
Industrial and architectural lighting
Household electrical appliances
Electronic and electrical equipment
Office equipment

Product Selection Guide

When selecting a DAA2 EMI filter, please consider the following factors based on your system:

Rated Current: Select a 1A–10A model based on the maximum current of your equipment.
Connection Method: If space/layout allows, choose insert type; for flexible wiring or customization, choose cable connection.
Leakage Current: ≤ 0.5mA, suitable for equipment with high safety requirements.
Number of Filtering Stages: Whether a two-stage design is needed to improve low-frequency suppression.
Environmental Conditions: Operating temperature -25℃ to +85℃
Customization Requirements: Please discuss requirements such as wire length and terminal type with the DOREXS customization team.

Installation Instructions

Connect the DAA2 in series to the power line to ensure effective noise filtering.
Keep the connection as short as possible to reduce parasitic inductance.
It is recommended to ground the filter properly (depending on the selected version).
Avoid parallel routing with noise-sensitive signal lines to reduce coupling interference.
If a two-stage version is required, indicate the location on the installation diagram to maximize low-frequency filtering performance.
